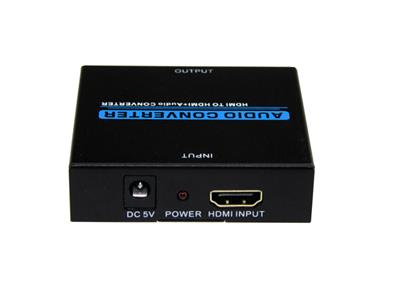

1.0 INTRODUCTION

The converter allows the HD Source connected to single HD Display and adds extra one 3.5/ L+R and SPDIF /COAXIAL audio out port.

It offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

 2.0 FEATURES

1.One HDMI input converted to one HDMI+ Audio (SPDIF+3.5(L/R)+COAXIAL) output;

2. Output audio support: SPDIF+COAXIAL+ 3.5(L/R) analog Audio Output;

3. Input Resolution: up to 1080P(50/60Hz);

4. HDMI to achieve the synchronization of audio signal separation;

Automatic identification 2.0CH / 5.1CH Two kinds of audio mode options;

5.LED indication: when source or sink is working, LED relative to is light;

6.No loss of quality;

7.Installs in minutes;

8.Need DC 5V/1A power supply.

3.0 PACKAGE CONTENTS

Before attempting to use this unit. please check the packing and make sure the following items are contained in the shiping carton:

1、Main unit----------------------------------1Pcs

2、User's Manual---------------------------1Pcs

3、5V DC Power Supply------------------1Pcs
